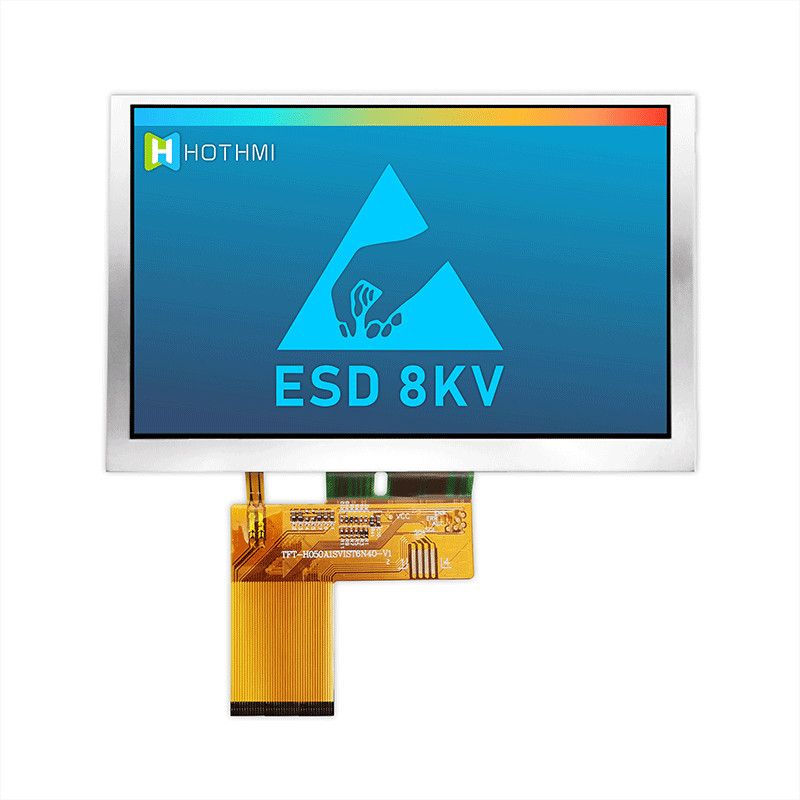

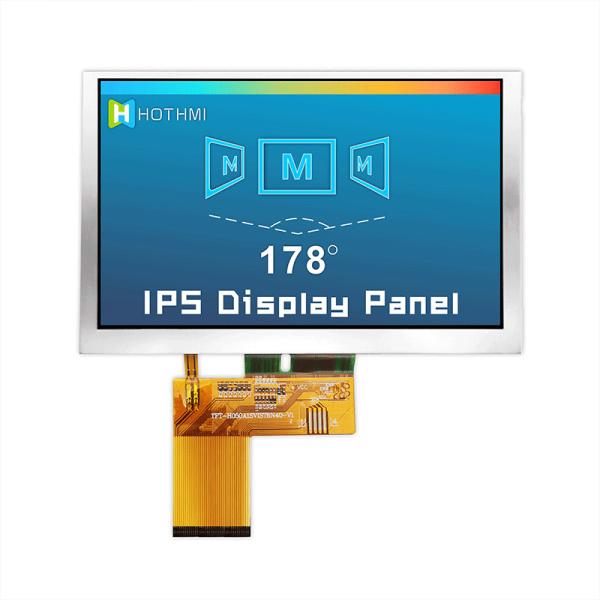

5" TFT LCD Display with RGB Interface 800x480 Dots

Name: 5quot TFT LCD Display with RGB Interface 800x480 Dots
Brand: HOTHMI
Price: 1 USD

China 5" TFT LCD Display with RGB Interface 800x480 Dots wholesale

Brand Name : HOTHMI

Model Number : TFT-H050A1SVIST6N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Landscape

Product Application : Printers, Copiers, Smart Home, Vehicle Instruments

Dimensions (mm) : 120.7x75.8x3.0

Effective size (mm) : 108.0x64.8

Viewport Window Size : 5.0 inch

Driver IC Model : ST7262

Contact Now

5.0 Inch IC 7262 Color TFT LCD Modules/800 X 480 Dots/TFT-H050A1SVIST6N40

Product parameters

Display Content - 800x480
Display Size - 5.0 inch
Perspective - Full Perspective
Backlight brightness - 600cd/m2
Connection method PIN number - 40PIN0.5 connected
Interface method - RGB
Special Instructions - Ultra Wide Temperature Operation
Working temperature - (-30~80℃)
Supply Voltage - 3.3V

General Feature

Item	Standard Value	Unit
Display Size	5.0 inch	--
Number of Pixels	800(H)x3(RGB)*480(V)	--
Active Area	108.00(H) *64.80(V)	mm
Outline Dimension	120.70(H) ×75.80× 3.0(V)	mm
Viewing Direction	FULL O’Clock	-
Interface	TTL 24 bit interface	-
LCM Driver IC	ST7262	-
LCM Driver Condition	VCI=3.3V	V
Backlight	White LED	-
Touch Panel	Without Touch Panel	-
CTP Driver IC	- - -
CTP Driver Condition	- - -
Operation Temperature	-30~75	℃
Storage Temperature	-30~85	℃

Pin Description

Pin NO.	Symbol	Description
1	LED_K	LED Cathode
2	LED_A	LED Anode(+16V/40mA)
3	GND	Ground
4	VCI	Analog Power(3.0 ~ 3.6 V,3.3V)
5-12	DR0-DR7	Red data bus.
13-20	DG0-DG7	Green data bus.
21-28	DB0-DB7	Blue data bus.
29	GND	Ground
30	PCLK	Pixel clock input pin
31	DISP	Display on/off (DISP=L:Standby mode;DISP=H:Normal display mode)
32	HSD	Horizontal sync signal, default is negative polarity.
33	VSD	Vertical sync signal, default is negative polarity.
34	DEN	Data input enable. Display access is enabled when DE is “H”.
35	NC	No Connector
36	GND	Ground
37	NC/RTP_XR	Resistive TP function pin.If not used, let this pin open.
38	NC/RTP_YD	Resistive TP function pin.If not used, let this pin open.
39	NC/RTP_XL	Resistive TP function pin.If not used, let this pin open.
40	NC/RTP_YU	Resistive TP function pin.If not used, let this pin open.
