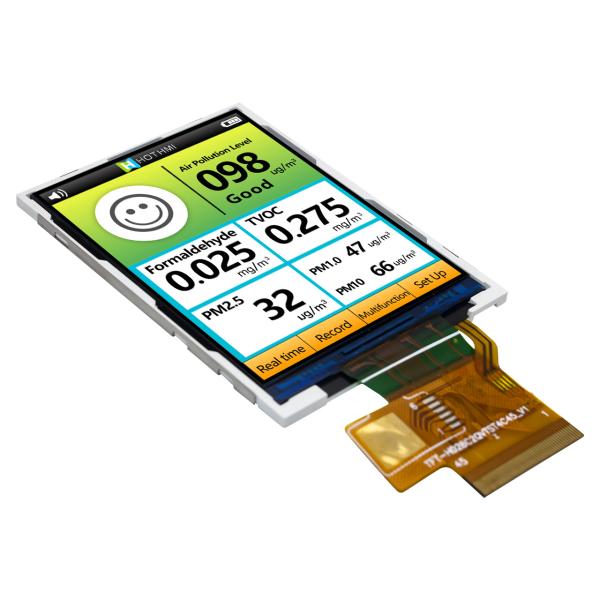

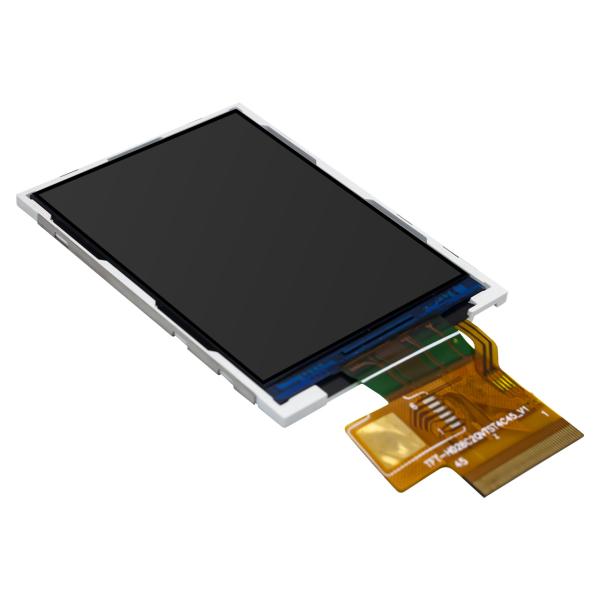

| Pin NO. | Symbol | Description |
| 1 | VCI | Analog Power(2.65 ~ 3.3 V) |
| 2 | GND | Ground |
| 3 | LED_A | LED Anode(+3.2V/60mA) |
| 4 | LED_K | LED Cathode |
| 5-8 | IM0-IM3 | The MCU interface mode select |
| 9 | TE | Tearing effect signal is used to synchronize MCU to frame memory writing.If not used, please let this pin open. |
| 10 | VSD | Vertical synchronizing input signal for RGB interface. If not used, please fix this pin at GND. |
| 11 | HSD | Horizontal synchronizing input signal for RGB interface. If not used, please fix this pin at GND. |
| 12 | PCLK | Dot clock signal for RGB interface. If not used, please fix this pin at GND. |
| 13 | DEN | Data enable signal for RGB interface. If not used, please fix this pin at GND. |
| 14-31 | DB17-DB0 | Data Bus.If not used, please fix this pin at GND. |
| 32 | RS/SPI_CLK | ♦Display data/command selection pin in parallel IF. ♦This pin is used to be serial interface clock. |
| 33 | RD | Read enable in 8080 MCU parallel IF. If not used, please fix this pin at GND. |
| 34 | WR/SPI_D/C | ♦Write enable in MCU parallel interface ♦Display data/command selection pin in 4-line serial IF. ♦Second Data lane in 2 data lane serial IF. |
| 35 | NC | No Connect |
| 36 | CS/SPI_CS | Chip select input pin (“Low” enable). |
| 37 | SPI_SDI | SPI input/output PIN or input, definition by IM3. If not used, please fix this pin at GND. |
| 38 | SPI_SDO | SPI interface output pin.If not used, let this pin open. |
| 39 | RESET | LCM Reset Pin. |
| 40 | CTP_VCC | If not used, please let this pin open. |
| 41 | GND | Ground |
| 42 | CTP-SCL | If not used, please let this pin open. |
| 43 | CTP-SDA | If not used, please let this pin open. |
| 44 | CTP-INT | If not used, please let this pin open. |
| 45 | CTP-RES | If not used, please let this pin open. |
